Jigs & Fixtures
Locating, clamping and inspection fixtures designed for repeatable single-setup production.
Est. 2025 · Bangalore, India
R M CNC
SOLUTIONS
Precision CNC components, jigs and fixtures for aerospace, defence and industry — machined to micron tolerance, inspected before release.
ISO 9001 : 2015 Certified
Scroll to machine
About us
Engineering partners built on precision.
Established in 2025, RM CNC Solutions delivers high-precision engineering and manufacturing across critical industries — aerospace components, jigs & fixtures, precision parts and machined components, all crafted to the highest industry standards. Alongside aerospace and defence we manufacture a wide range of automotive and industrial components, supported by modern CNC machinery and a skilled technical team.
Vision
Drive innovation through reliable, precision-manufactured solutions for advanced sectors.
Mission
Exceed customer expectations through continuous improvement, operational efficiency and uncompromising quality.
In-house
Milling · Turning · Fixturing · Inspection
Industries we serve
Where our parts end up.
Aerospace
Structural fittings, housings, brackets
Defence
Mission-critical machined assemblies
Medical
Clean, burr-free precision parts
Optics
Micron-stable mounts and seats
Food Manufacturing
Stainless hygienic components
Tools & Dies
Cavity blocks, jigs, gauges
Scroll showcase
Four parts, one continuous scroll — rotate, split, inspect.
01
Jigs & Fixtures
Hub Locating Fixture
Concentric boreØ turned register, run-out 0.01
Rib pocketsWeight relief, uniform 6 mm wall
Clamp bossesHardened contact pads
Technical Specification
- Material
- AL 6061 T6
- Tolerance
- ± 0.01 mm
- Finish
- Ra 0.8 μm
- Setups
- 1 (single clamp)
A single-setup aluminium fixture plate with concentric locating bores, rib-relieved pockets and datum pads machined in one continuous 3-axis cycle.
02
Aerospace & Defence

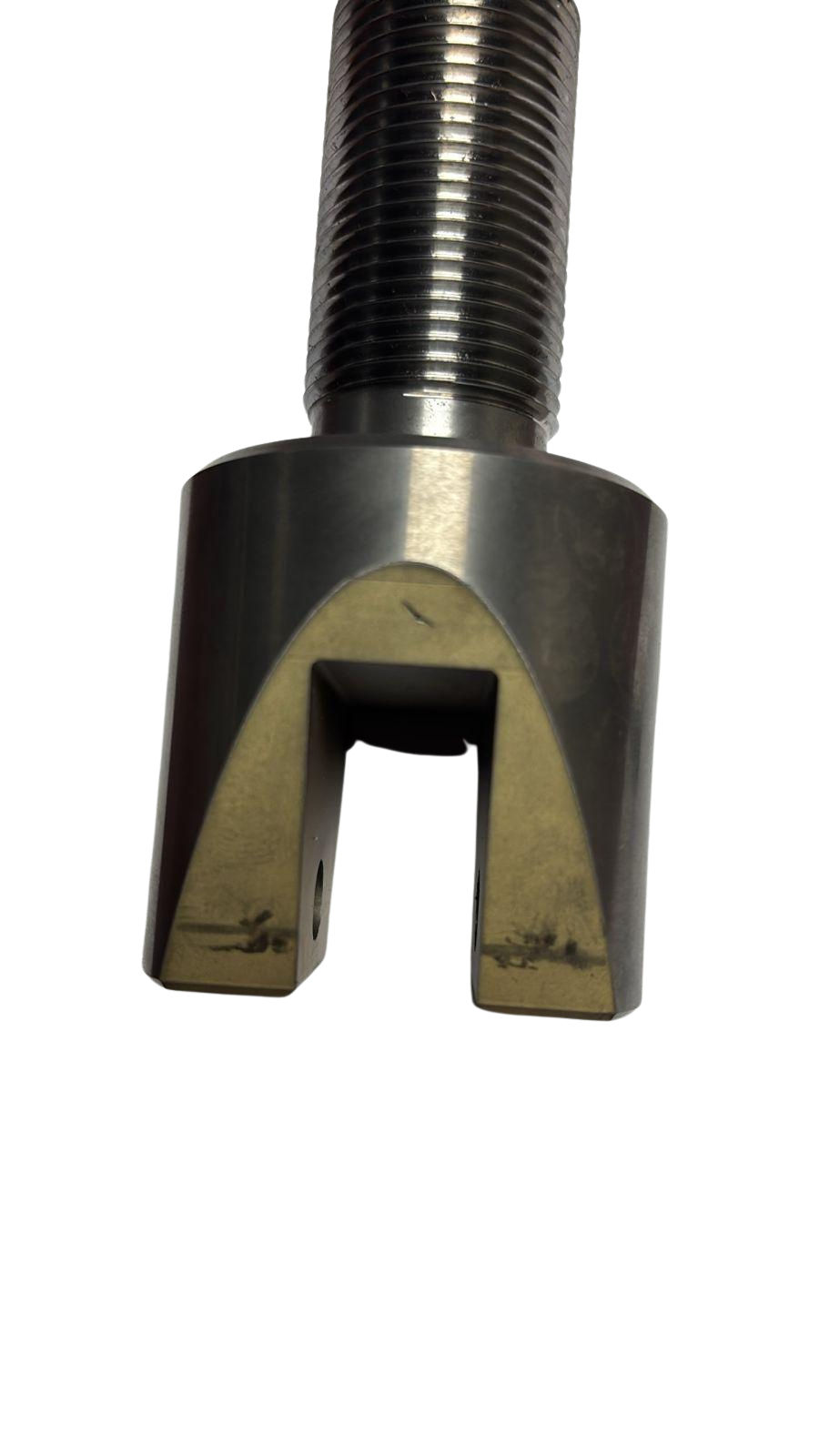

Threaded Clevis Fitting
Thread formClass 6g, gauge verified
Slot symmetry0.02 mm about centreline
Cross holeReamed, burr-free bore
Technical Specification
- Material
- Alloy steel, hardened
- Tolerance
- ± 0.015 mm
- Inspection
- Pin & thread gauge
- Sector
- Defence / Aero
Rolled-thread clevis end machined from alloy steel bar — slot symmetry, cross-hole alignment and thread pitch verified against gauge before release.
03
Precision Components
Contoured Link Arms
Radiused slotContinuous wall, no witness marks
Spherical seatBall-nose finished contour
Swept flank3D profile, 0.05 mm stepover
Technical Specification
- Material
- Stainless / AL plate
- Tolerance
- ± 0.02 mm
- Pairing
- Matched left / right
- Finish
- Ra 1.2 μm
Mirror-pair link arms with radiused slots, spherical seats and a swept profile surfaced on a fine-stepover finishing pass.
04
Tools & Dies

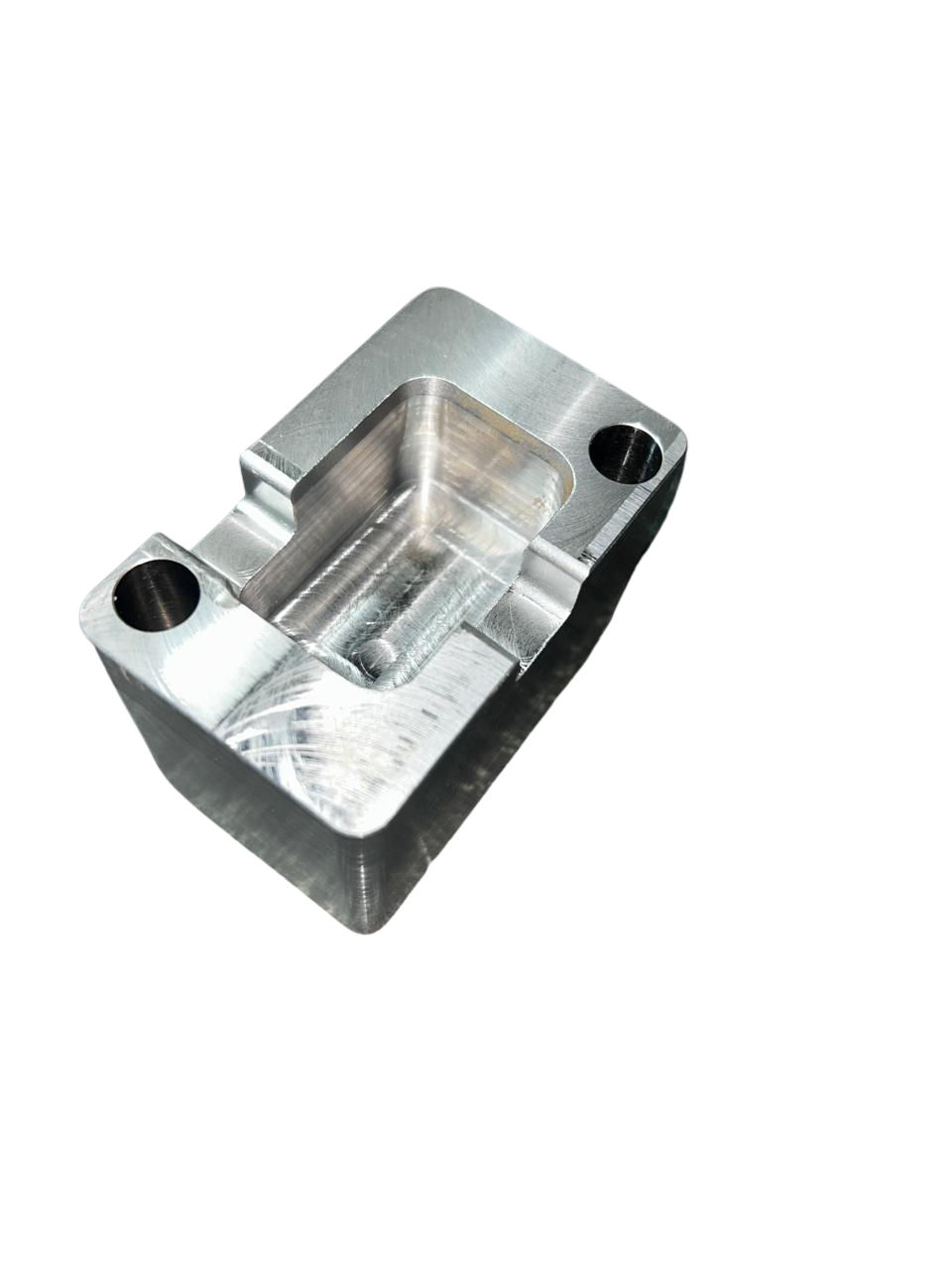

Cavity Die Block
Cavity floorFlatness within 0.01 mm
Dowel boresReamed H7 location
Corner blendTangent radius, no step
Technical Specification
- Material
- Tool-grade aluminium
- Tolerance
- ± 0.01 mm
- Bores
- H7 reamed
- Use
- Forming / moulding
Pocketed die block with blended corner radii, dowel bores and a polished cavity floor held flat across the full seating face.
What we make
Products & capabilities.

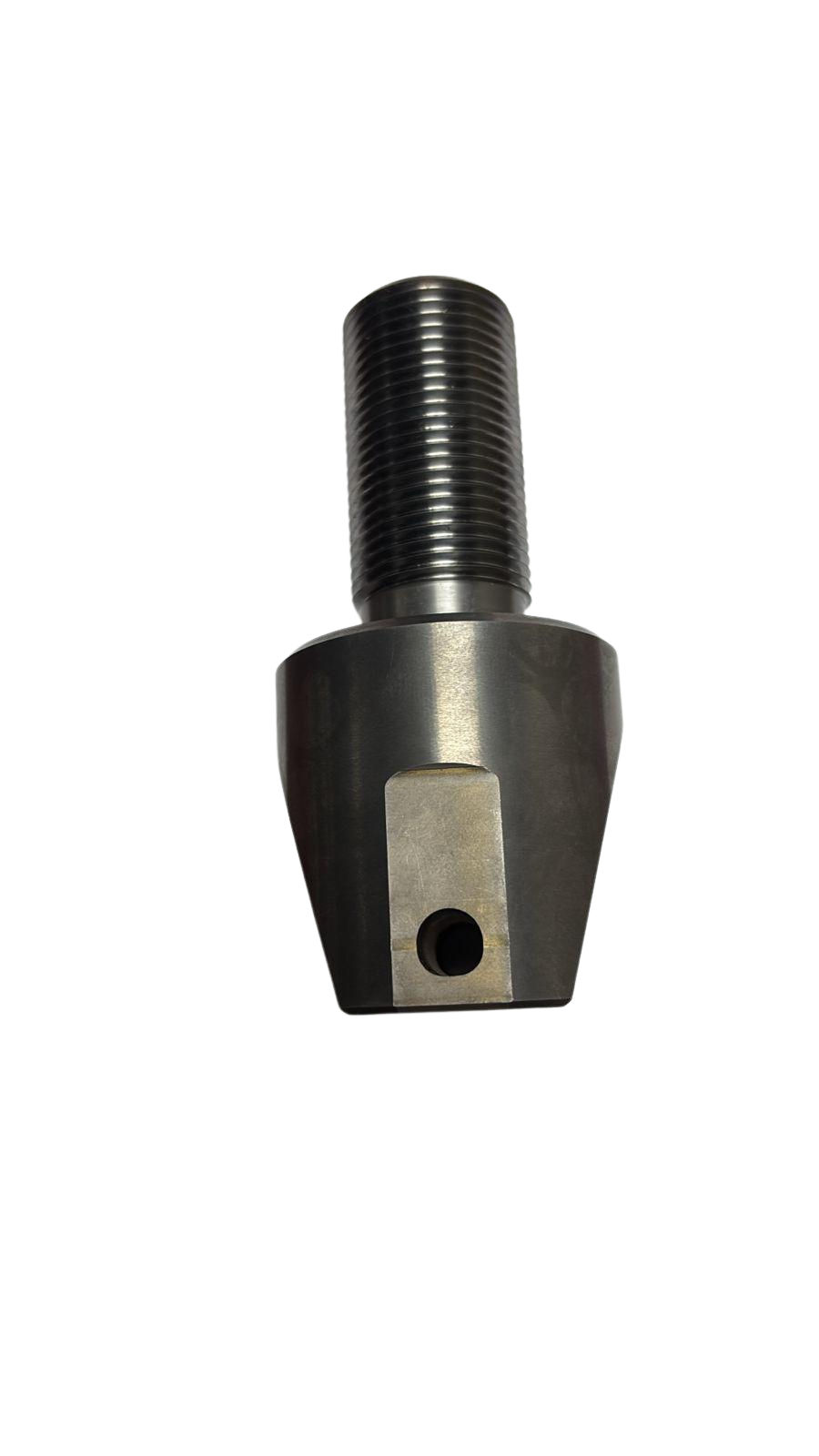

Precision Components
Turned and milled parts held to micron tolerances with full dimensional traceability.
Machined Components
Shafts, sleeves, blocks and housings in aluminium, steel and stainless grades.

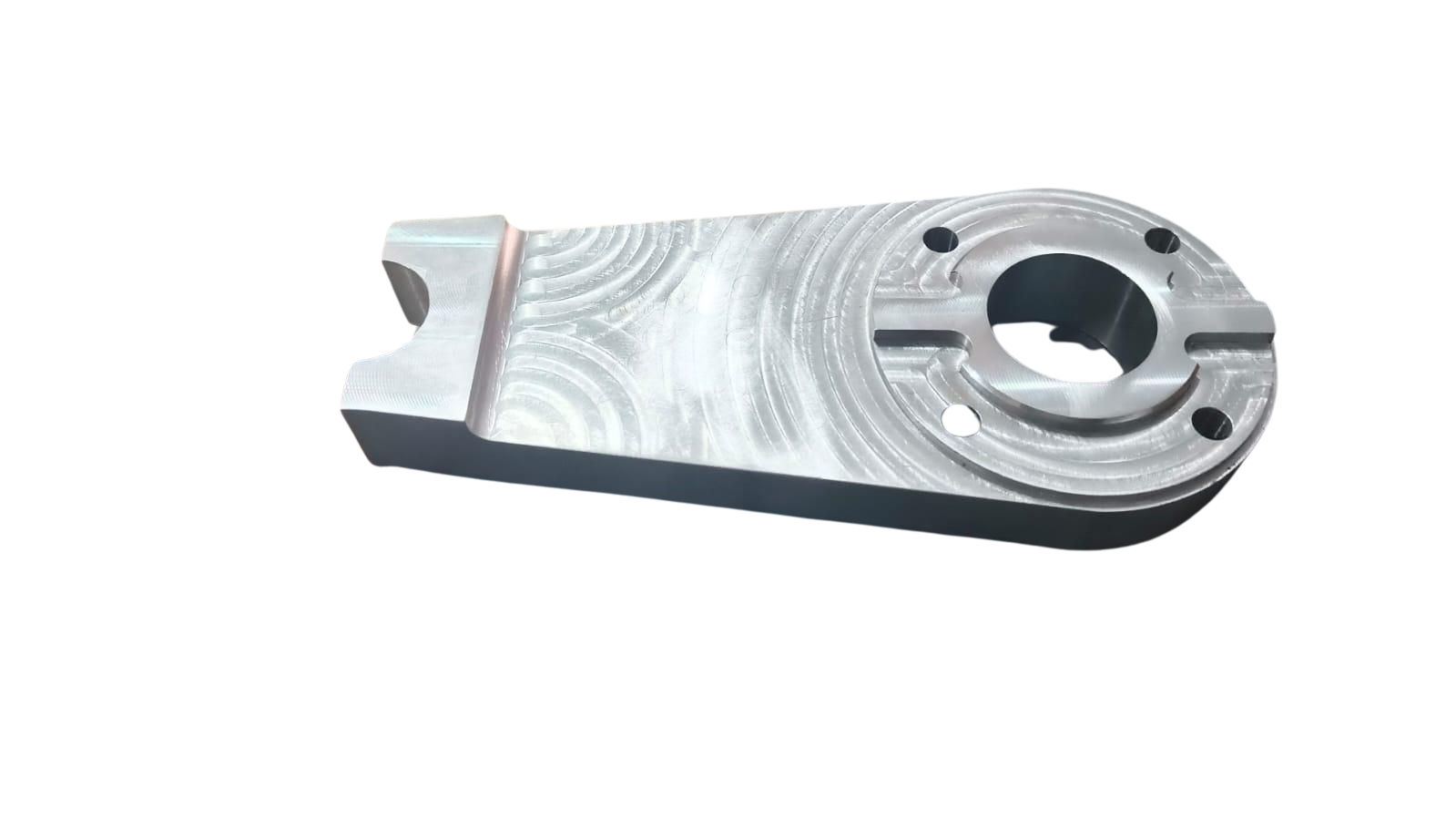

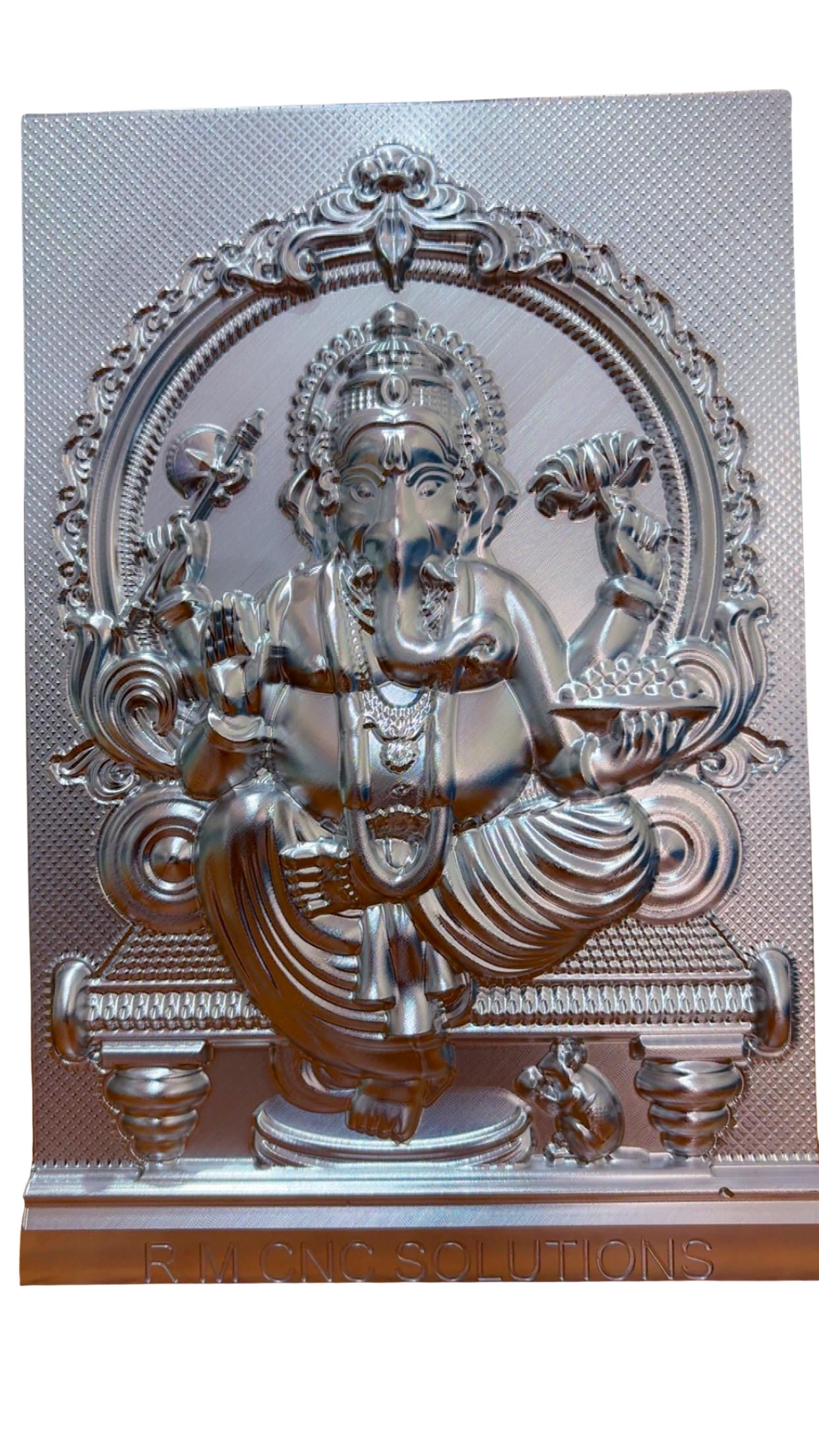

Art & Relief Machining
3D relief and sculpted surface machining with fine stepover finishing passes.
Facilities

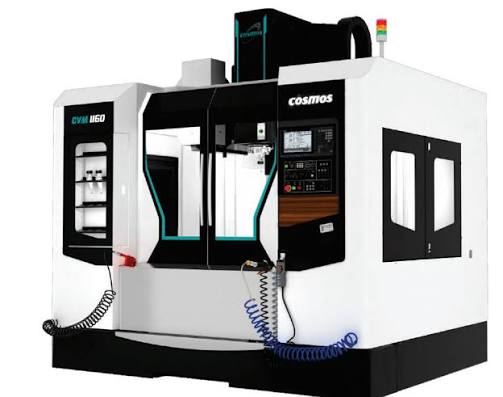

COSMOS CVM 1160
Travels
- X Axis
- 1100 mm
- Y Axis
- 650 mm
- Z Axis
- 600 mm
- Spindle Speed
- 8000 rpm

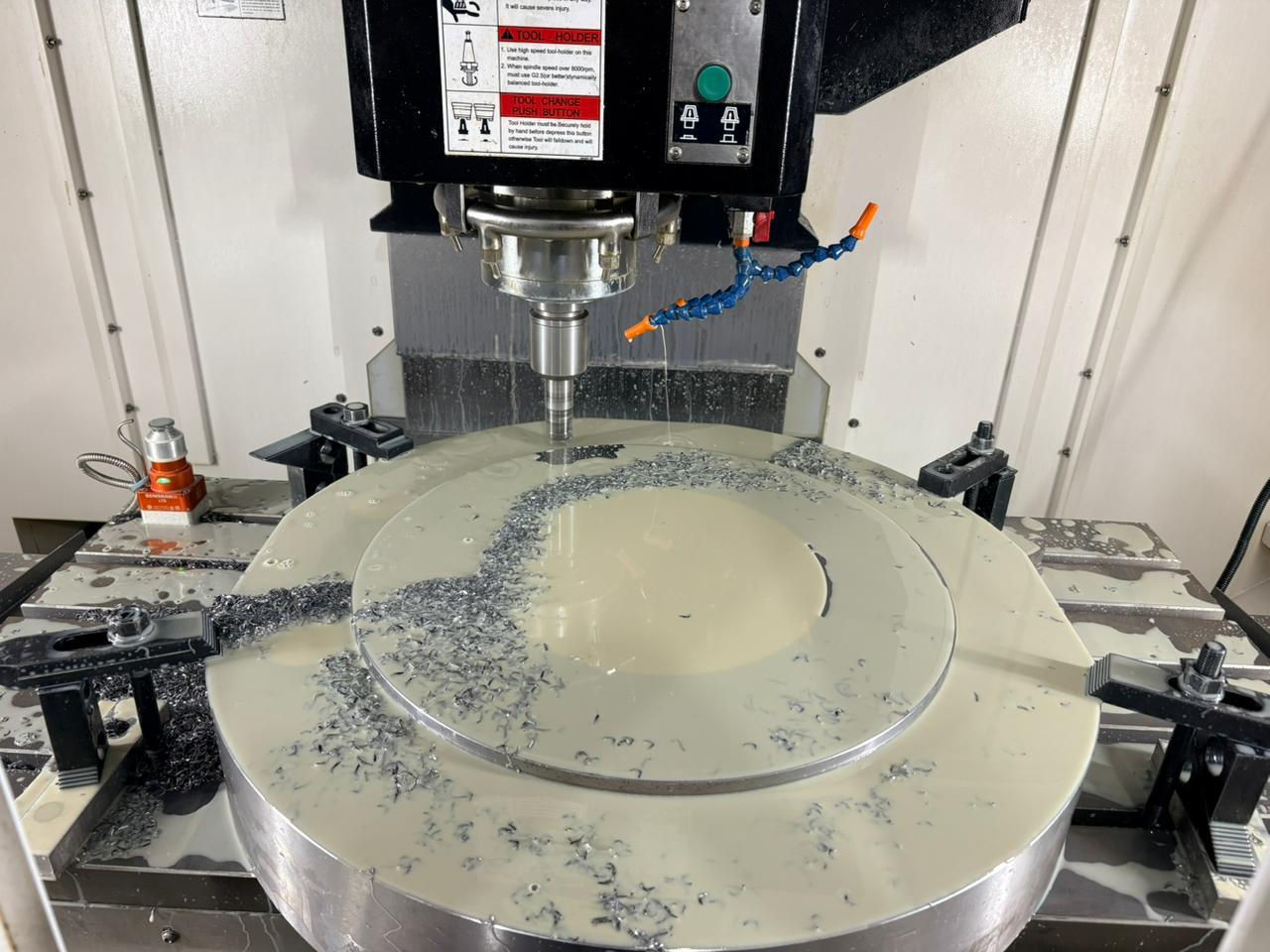

In-house machining
Inspection instruments
Height Gauge
Slip Gauge
Pin Gauge
Surface Table 1000 × 1000
Vernier Caliper 0–200 mm
Vernier Caliper 0–300 mm
Depth Vernier 0–150 mm
Micrometer 0–25 mm
Micrometer 25–50 mm
Customers
Trusted across Bangalore's industrial belt.
Rheology Advanced Systems Private LimitedLILLB Industries
Hittites Technology India Limited
Indo-MIM Private Limited
Hibex India LimitedACAJM CNC Tool Tech
M-Tec D Private Limited
XNG Automation Solutions Pvt Ltd
Tocal Machine Tools
Noval Aeroethics
Vinoothana Electro Control Systems Pvt Ltd
Micrologic Integrated Systems Pvt LtdPTPremac Tools Private Limited
Rheology Advanced Systems Private LimitedLILLB Industries
Hittites Technology India LimitedIndo-MIM Private LimitedHibex India LimitedACAJM CNC Tool Tech
M-Tec D Private LimitedXNG Automation Solutions Pvt LtdTocal Machine ToolsNoval AeroethicsVinoothana Electro Control Systems Pvt LtdMicrologic Integrated Systems Pvt LtdPTPremac Tools Private Limited
Testimonials
What customers say about our precision.
Hittites Technology India Limited
5.0/5
★★★★★
“The machining quality and consistency were excellent. We received accurate fixture components on time and with very little rework required.”
Micrologic Integrated Systems
5.0/5
★★★★★
“Their attention to tolerances and finishing details helped us reduce downtime on the floor. Communication was clear from quote to dispatch.”
Vinoothana Electro Control Systems
5.0/5
★★★★★
“RM CNC Solutions understood our critical dimensions and delivered high-precision parts with reliable repeatability across batches.”
AJM CNC Tool Tech
5.0/5
★★★★★
“The turnaround for tooling components was fast, and the finish quality was consistent enough to support our production schedule without delays.”
Contact
Send us your drawing.
Works address
#46, 16th Cross, Byraveshwara Industrial AreaAndhrahalli Main Road, Vishwaneedam PostBangalore – 560 091, Karnataka, India
Registration
GST No
29BDQPH3678R1ZC
Proprietor
Hemanth Kumar
